Sparkling shiny things with Metal and SwiftUI

Uladzislau Volchyk
24 min readOct 20, 2024

--

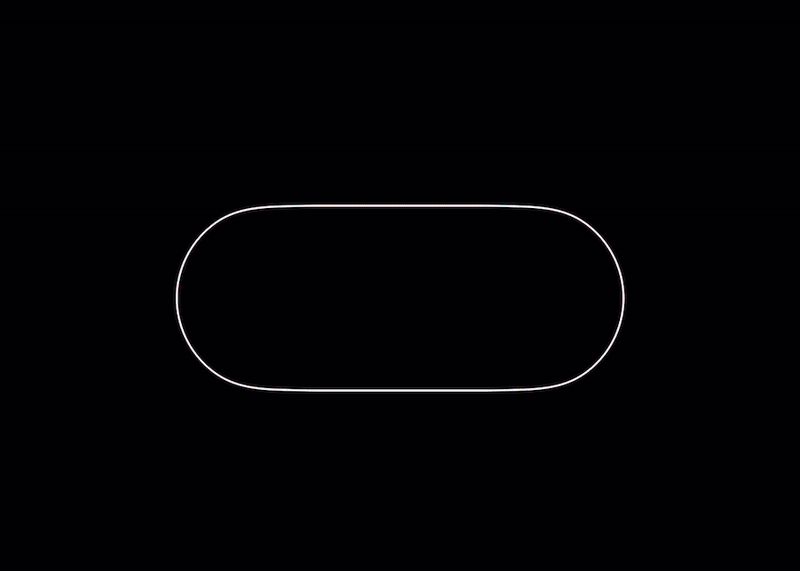

Today’s inspiration comes from this amazing animation.

Decomposing the details, there are three main parts of this interaction:
1. Glowing border
2. Ripple wave
3. Flowing particles

For glow and ripple effects we will explore and apply SwiftUI shader effects. Particles cloud will be implemented we will dig a little deeper and create a compute pipeline with MetalKit.

If you can’t wait and want try it on your own, then the gist with the final result can be found at the end of the article.

Before all define the basic layout of our view. Further we will be enhancing it step by step.

import SwiftUI

struct ReactiveControl: View {
var body: some View {
GeometryReader { proxy in
ZStack {
Capsule()
.fill(.black)
Capsule()
.strokeBorder(
Color.white,
style: .init(lineWidth: 1.0)
)
}
}
}
}

#Preview {
ZStack {
Color.black.ignoresSafeArea()
ReactiveControl()
.frame(
width: 240.0,
height: 100.0
)
}
}

Glowing border

Writing shader code is hard without planning the expected behaviour. Primary trigger for the glowing effect is a location of the user’s touch. The rule is:

The closer the border is to the point of touch, the brighter it is. Conversely, the further away it is, the more transparent it is.

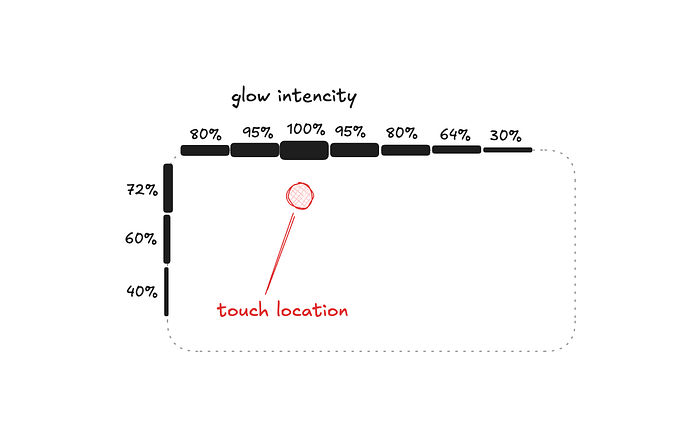

Schematically it would be illustrated as this. Thicker rectangle represents brighter pixels, thinner — dimmer.

Glow density distribution

Thus one of the main parameters for the shader to work is the touch location, moreover we need to distinguish the first touch from all the others happening while user is dragging a finger.

Touch handling

Let’s play from this and define the infrastructure for touch handling in the initial view, here DragState models the two states of user touches.

struct ReactiveControl: View {
private enum DragState {
case inactive
case dragging
}

@GestureState private var dragState: DragState = .inactive
@State private var dragLocation: CGPoint?

...
}

Next update the view hierarchy with a DragGesture instance. We set it's minimum distance to .zero so the gesture starts right after user touches the screen. Using updating modifier we associate the gesture with the previously defined DragGesture.

var body: some View {
GeometryReader { proxy in
ZStack { ... }
.gesture(
DragGesture(
minimumDistance: .zero
)
.updating(
$dragState,
body: { gesture, state, _ in }
)
)
}
}

At this point, we need to define the logic for handling gesture states. Each time the user initiates a gesture, we start in the inactive state, which SwiftUI handles automatically. Our job is to assign the location and move on to the next state.

When the user drags their finger, we also update the location based on the size of the view.

.updating(
$dragState,
body: { gesture, state, _ in
switch state {
case .inactive:
dragLocation = gesture.location

state = .dragging
case .dragging:
let location = gesture.location
let size = proxy.size

dragLocation = CGPoint(
x: location.x.clamp(
min: .zero,
max: size.width
),
y: location.y.clamp(
min: .zero,
max: size.height
)
)
}
}
)

Here, clamp is a mathematical function that ensures the current value stays within defined limits. If the value is within those limits, it is returned as is; otherwise, the nearest limit value is returned.

For example, 3.clamp(min: 4, max: 6) will return 4 because the value 3 is below the minimum limit of 4.

extension Comparable where Self: AdditiveArithmetic {
func clamp(min: Self, max: Self) -> Self {
if self < min { return min }
if self > max { return max }
return self
}
}

Glowing shader

Now we can proceed with the shader itself. We start by creating a ViewModifier to encapsulate the related logic. The touch location needed to calculate the glow intensity is represented by the origin parameter.

struct ProgressiveGlow: ViewModifier {
let origin: CGPoint

func body(content: Content) -> some View {}
}

Fill the function body with the visualEffect modifier call.

func body(content: Content) -> some View {
content.visualEffect { view, proxy in }
}

According to the documentation, this modifier offers information about a view’s geometry without affecting its layout. It serves as a good alternative to GeometryProxy for animations.

One of the effects we want to use here is colorEffect. This modifier creates a SwiftUI visual effect instance based on the specified Metal shader.

content.visualEffect { view, proxy in
view.colorEffect(
ShaderLibrary.default.glow(
.float2(origin),
.float2(proxy.size)
)
)
}

Thanks to the ShaderLibrary type, SwiftUI can retrieve and interact with Metal shaders without requiring the developer to manually configure the interaction between the two realms. (We'll cover that in the final part of this article 😉).

ShaderLibrary.default syntax means that the shader code search will take place in the main bundle. If .metal files are located in a bundle other than .main, use ShaderLibrary.bundle(_:) builder.

We access the required shader by calling it like a regular Swift function, thanks to the @dynamicMemberLookup attribute on ShaderLibrary. In our case, we assume the shader function name defined in the .metal file will be glow.

In the method call, we pass the necessary parameters, which in our case are the touch location and view size. To make them compatible with Metal, we wrap them in the float2 primitive, which represents a vector or ordered pair of two values. This pair corresponds to CGPoint or CGSize.

See the Shader.Argument type to find more primitives available for passing.

Let’s write the shader code. Create a new .metal file and add this starter code.

#include <SwiftUI/SwiftUI.h>
#include <metal_stdlib>

using namespace metal;

[[ stitchable ]]
half4 glow(
float2 position,
half4 color,
float2 origin,
float2 size
) { }

First, we need to normalize the received coordinates within the bounds of the current view so we can perform further calculations without relying on the absolute dimensions.

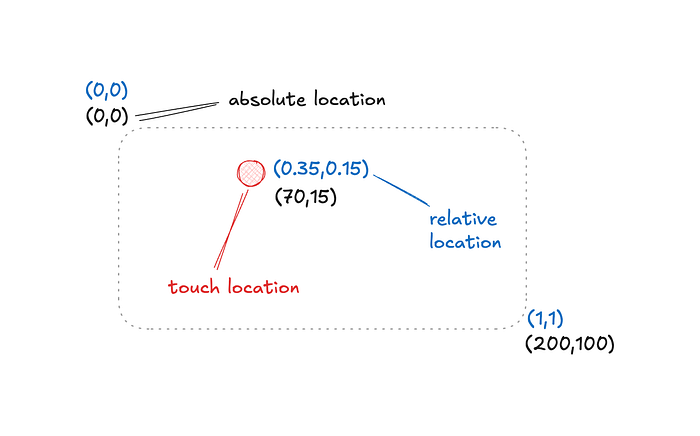

Comparing absolute and relative coordinates

To achieve this, we divide the coordinates by the size of the view.

float2 uv_position = position / size;
float2 uv_origin = origin / size;

Next we calculate the distance from the origin to the pixel on the border.

float distance = length(uv_position - uv_origin);

The glow intensity will be based on exponent of negated distance square. This function is ideal for our problem — as the distance increases, the resulting value tends to zero.

float glowIntensity = exp(-distance * distance);

You can use graphtoy to verify the behaviour of the described functions.

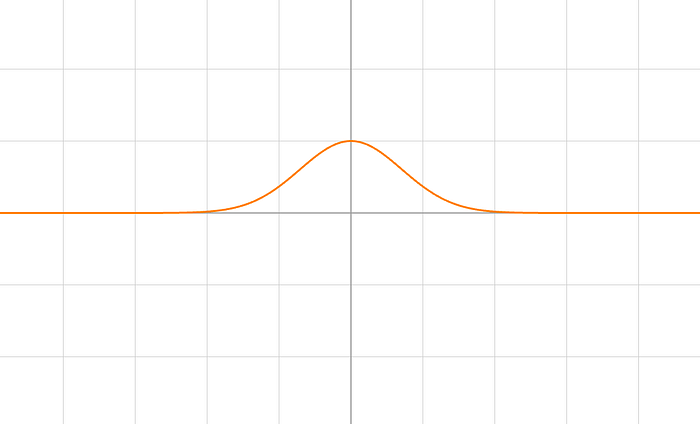

Decay function graph

Then we modulate the intensity a bit to further limit the spread of the glow. Here the smoothstep function acts pretty the same way as the clamp function we've defined earlier

glowIntensity *= smoothstep(0.0, 1.0, (1.0 - distance));

Here is the demonstration of the composition of these functions.

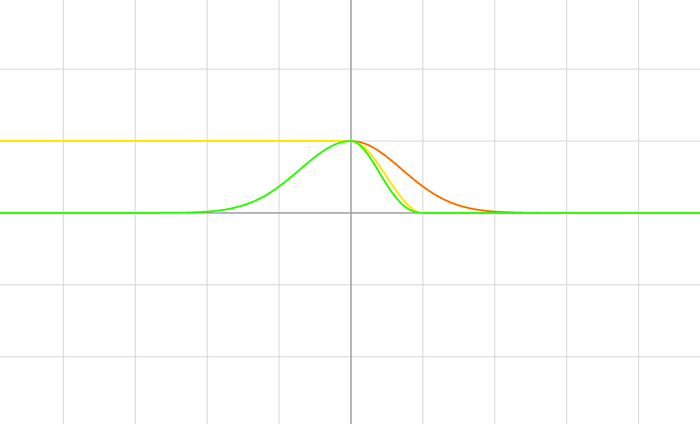

Resulting intensity function (green)

And finally all we need is return the resulting color with the applied intensity coefficient.

return color * glowIntensity;

Check the resulting code to make sure nothing is missed.

[[ stitchable ]]
half4 glow(
float2 position,
half4 color,
float2 origin,
float2 size
) {
float2 uv_position = position / size;
float2 uv_origin = origin / size;

float distance = length(uv_position - uv_origin);

float glowIntensity = exp(-distance * distance);

glowIntensity *= smoothstep(0.0, 1.0, (1.0 - distance));

return color * glowIntensity;
}

Back to SwiftUI code, we need to apply this shader.

ZStack {
...
Capsule()
.glow(fill: .palette, lineWidth: 4.0)
.modifier(
ProgressiveGlow(
origin: dragLocation ?? .zero
)
)
}

The glow effect we applied to the Capsule uses a SwiftUI-only implementation, which is detailed in this article.

You may notice that the glow starts at the top left corner, moreover it’s displayed all the time, regardless of whether there is an active touch or not.

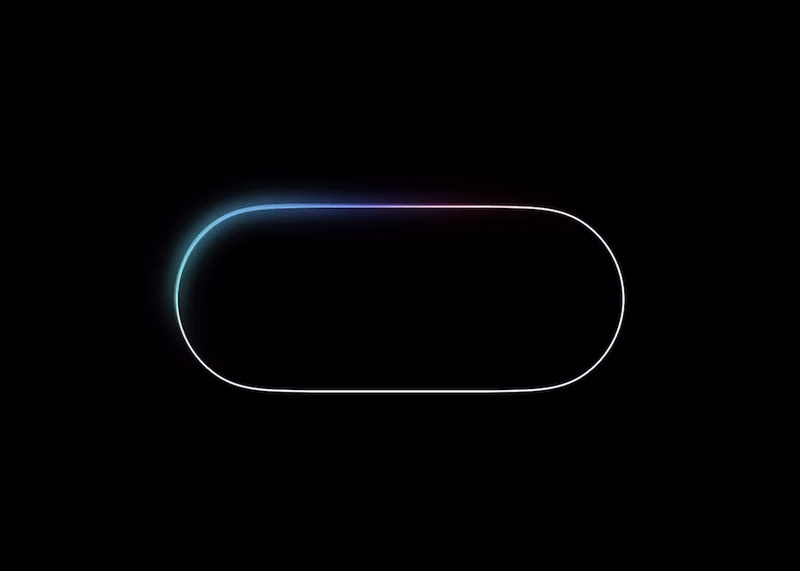

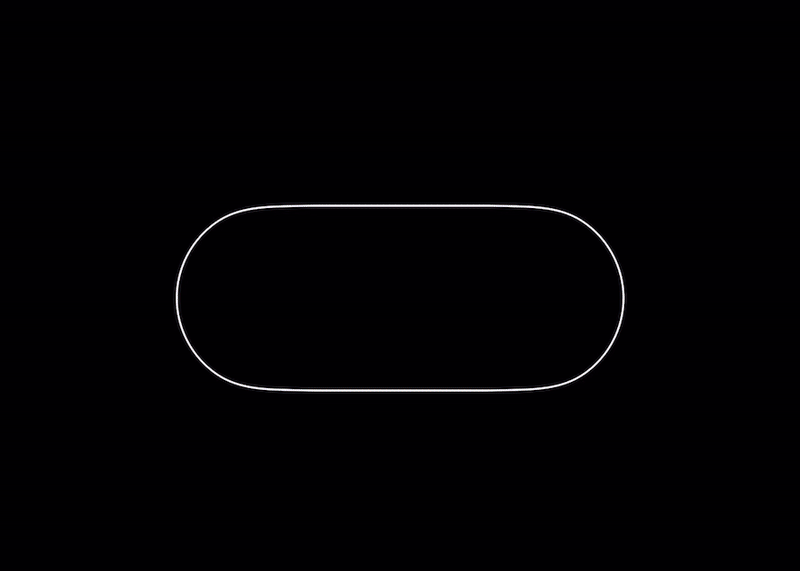

Basic moving glow

Timing the glow

To fix this, we need to introduce the concept of glow progress assuming that it’s value may vary in range from 0.0 to 1.0. Here we also introduce declare amplitude that will help us control the glow intensity from the outside.

Since from SwiftUI we call this shader as colorEffect, in Metal we need to define its interface in a special way. In short, [[ stitchable ]] allows us to delegate the search and method call to SwiftUI, the position and color parameters are also passed by SwiftUI automatically.

More about attributes in Metal can be found in the official language specification.

[[ stitchable ]]
half4 glow(
float2 position,
half4 color,
float2 origin,
float2 size,
float amplitude,
float progress
) { ... }

First modify the original intensity function by multiplying it by the amplitude and progress. This will ensure that the intensity will gradually vary along the length as the progression changes.

float glowIntensity = smoothstep(0.0, 1.0, progress) * exp(-distance * distance) * amplitude;

Then make the modulation depend on the progress. Because of this change, the intensity will gradually spread from the point closest to the touch to the furthest point as the progress changes.

glowIntensity *= smoothstep(0.0, 1.0, (1.0 - distance / progress));

Going back to SwiftUI, we add progress as the ProgressiveGlow parameter. We also need to provide values for the shader parameters just defined. Here the amplitude value is assumed to be 3.0, but you can change it to a more convenient value for you.

struct ProgressiveGlow: ViewModifier {
let origin: CGPoint
let progress: Double

func body(content: Content) -> some View {
content.visualEffect { view, proxy in
view.colorEffect(
ShaderLibrary.default.glow(
.float2(origin),
.float2(proxy.size),
.float(3.0),
.float(progress)
)
)
}
}
}

It remains to implement an animation mechanism for the glow, the heartbeat of which will be based on keyframe animation. Add a state variable glowAnimationID that identifies the active glow animation.

struct ReactiveControl: View {
@State private var glowAnimationID: UUID?

...
}

Then replace a direct assign of modifier with keyframeAnimator wrap. Here the previously defined glowAnimationID acts as a trigger for the animation and fires it whenever its value changes. The elapsedTime parameter provided by closing the content of an animation represents, for our purposes, the progress of that animation.

Capsule()
.glow(fill: .palette, lineWidth: 4.0)
.keyframeAnimator(
initialValue: .zero,
trigger: glowAnimationID,
content: { view, elapsedTime in
view.modifier(
ProgressiveGlow(
origin: dragLocation ?? .zero,
progress: elapsedTime
)
)
},
keyframes: { _ in ... }
)

Using keyframes closure we can control the elapsedTime value. By checking the presence of the glowAnimationID value, we decide whether we should display the glow or hide it completely. MoveKeyframe allows to set the initial value for elapsedTime, and LinearKeyframe allows to change this value to a new one for the specified time interval.

So basically when glowAnimationID is not nil, we change the value of elapsedTime from 0.0 to 1.0 in 0.4 seconds and vice versa.

keyframes: { _ in
if glowAnimationID != nil {
MoveKeyframe(.zero)
LinearKeyframe(
1.0,
duration: 0.4
)
} else {
MoveKeyframe(1.0)
LinearKeyframe(
.zero,
duration: 0.4
)
}
}

We also need to update the gesture handling by assigning a new animation identifier each time the user starts a new gesture cycle.

.updating(
$dragState,
body: { gesture, state, _ in
switch state {
case .inactive:
dragLocation = gesture.location
glowAnimationID = UUID()

state = .dragging
case .dragging:
...
}
}
)

And clear the identifier as soon as the user completes the gesture cycle.

.updating(
$dragState,
body: { gesture, state, _ in ... }
)
.onEnded { _ in
glowAnimationID = nil
}

Well, there is a huge work done at the moment.

Progressive moving glow

One third of our animation is done, moving further.

Ripple wave

Recent revisions of SwiftUI are marked by increased attention from Apple making Metal look not so scary and be easy to integrate with UI components. Thus WWDC24 features this great tutorial about creating custom visual effects, which contains the exact ripple effect we want to get.

Let’s get better understanding of the math behind this shader.

First we calculate the distance between the origin of the wave and some point on the view.

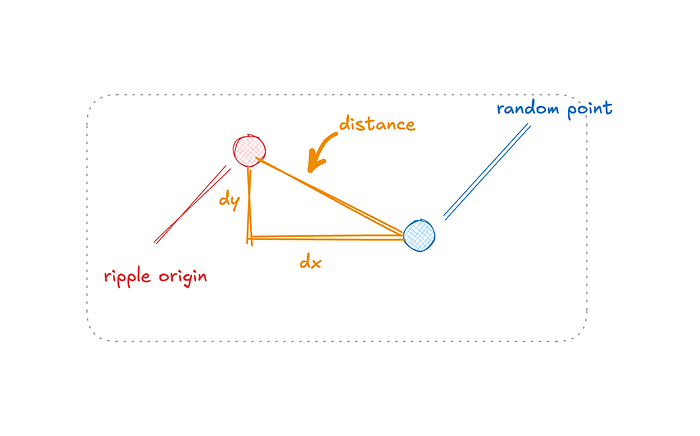

Pythagoras’ theorem illustrated
float distance = length(position - origin);

Next, we model the time it takes for the wave to reach a point on the view. If the point is too far from the origin (i.e., if the delay is greater than the current time), we clamp the value to zero, indicating no ripple effect at that distance. Essentially, a higher speed results in a lower delay, leading to wider wave propagation per second, which means more pixels are affected by the ripple.

float delay = distance / speed;
time = max(0.0, time - delay);

Next, we define the main value of this effect: the ripple amount. In this example, its heartbeat is determined by a sine function of time. The frequency modulates the number of peaks, while the amplitude defines the height of these peaks. An exponential decay function helps gradually diminish the effect over time.

float rippleAmount = amplitude * sin(frequency * time) * exp(-decay * time);

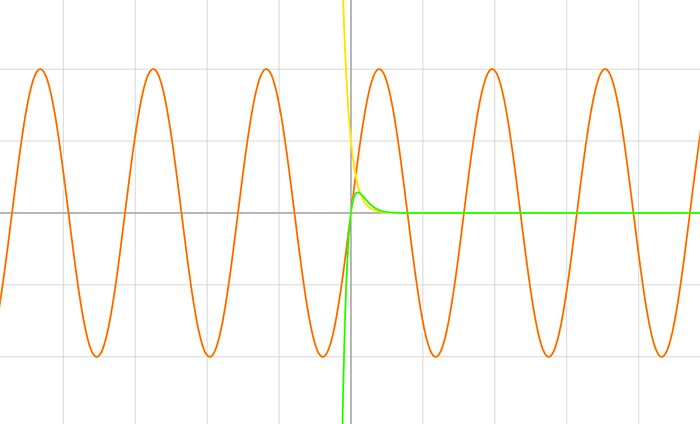

Here is graphtoy link to better understand the function composition. The graph shows that the resulting function value quickly rises (indicated by the brighter pixels of the wave) in a short period, then gradually decreases as the wave fades. As a result, we will have one peak with bright values representing a wave moving from the touch location to the view borders.

Resulting ripple function (green)

Although graphtoy provides its own variable for time, we do not use it when explaining formulas. Our time variable is represented by values on Ox.

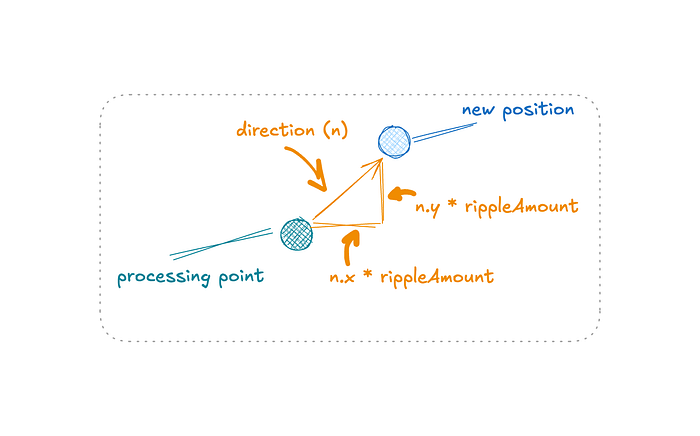

This part might be tricky: newPosition is the coordinate of a pixel on the screen that will replace the current pixel. This creates a distortion effect, which becomes more pronounced with higher values of frequency and amplitude.

Direction and ripple magnitude application
float2 direction = normalize(position - origin);
float2 newPosition = position + rippleAmount * direction;

After that, we use newPosition to retrieve the replacement pixel, specifically its color information.

half4 color = layer.sample(newPosition);

All that’s left is to model the color brightness proportional to the ripple’s magnitude and the current alpha of that color.

color.rgb += (rippleAmount / amplitude) * color.a;
return color;

Here is the complete code of this shader from the Apple’s tutorial. Note that the interface of this function is also built in a special way, in SwiftUI it corresponds to the layerEffect call.

#include <SwiftUI/SwiftUI.h>
#include <metal_stdlib>

using namespace metal;

[[ stitchable ]]
half4 ripple(
float2 position,
SwiftUI::Layer layer,
float2 origin,
float time,
float amplitude,
float frequency,
float decay,
float speed
) {
// The distance of the current pixel position from `origin`.
float distance = length(position - origin);

// The amount of time it takes for the ripple to arrive at the current pixel position.
float delay = distance / speed;

// Adjust for delay, clamp to 0.
time = max(0.0, time - delay);

// The ripple is a sine wave that Metal scales by an exponential decay function.
float rippleAmount = amplitude * sin(frequency * time) * exp(-decay * time);

// A vector of length `amplitude` that points away from position.
float2 direction = normalize(position - origin);

// Scale `n` by the ripple amount at the current pixel position and add it
// to the current pixel position.
//
// This new position moves toward or away from `origin` based on the
// sign and magnitude of `rippleAmount`.
float2 newPosition = position + rippleAmount * direction;

// Sample the layer at the new position.
half4 color = layer.sample(newPosition);

// Lighten or darken the color based on the ripple amount and its alpha component.
color.rgb += (rippleAmount / amplitude) * color.a;

return color;
}

Next same as with glow we declare a view modifier and duplicate all the properties from the shader interface.

struct RippleModifier: ViewModifier {
let origin: CGPoint
let elapsedTime: TimeInterval
let duration: TimeInterval
let amplitude: Double
let frequency: Double
let decay: Double
let speed: Double

func body(content: Content) -> some View { ... }
}

We start the body of the modifier by invoking the shader library to create an instance of the shader function.

func body(content: Content) -> some View {
let shader = ShaderLibrary.default.ripple(
.float2(origin),
.float(elapsedTime),
.float(amplitude),
.float(frequency),
.float(decay),
.float(speed)
)
}

And we complete it by creating a shader effect in the visualEffect wrapper to allow SwiftUI to perform animations without affecting the layout of the elements.

func body(content: Content) -> some View {
...

let maxSampleOffset = CGSize(
width: amplitude,
height: amplitude
)
let elapsedTime = elapsedTime
let duration = duration

content.visualEffect { view, _ in
view.layerEffect(
shader,
maxSampleOffset: maxSampleOffset,
isEnabled: 0...duration ~= elapsedTime
)
}
}

Timing the ripple

For the final step, we need to link user actions with the shader call. Let’s add an identifier for the ripple animation and a separate variable to track the initial touch point.

struct ReactiveControl: View {
@State private var rippleAnimationID: UUID?
@State private var rippleLocation: CGPoint?

...
}

Apply keyframeAnimator to the lowest view in the hierarchy. The ripple parameters used here create a uniform wave that roughly aligns with the rest of the animation we're developing. We can also add sensoryFeedback here to give the effect even more impact.

ZStack {
Capsule()
.fill(.black)
.keyframeAnimator(
initialValue: 0,
trigger: rippleAnimationID,
content: { view, elapsedTime in
view.modifier(
RippleModifier(
origin: rippleLocation ?? .zero,
elapsedTime: elapsedTime,
duration: 1.0,
amplitude: 2.0,
frequency: 4.0,
decay: 10.0,
speed: 800.0
)
)
},
keyframes: { _ in ... }
)
.sensoryFeedback(
.impact,
trigger: rippleAnimationID
)
...
}

The keyframes describe the ripple motion in only one direction, as we start the animation when the user first touches the screen.

keyframes: { _ in
MoveKeyframe(.zero)
LinearKeyframe(
1.0,
duration: 2.0
)
}

To trigger the animation, we update the gesture handling callback for the inactive state by assigning a new identifier for the ripple and setting the location of the touch.

.updating(
$dragState,
body: { gesture, state, _ in
switch state {
case .inactive:
rippleAnimationID = UUID()
rippleLocation = gesture.location

...
case .dragging:
...
}
}
)

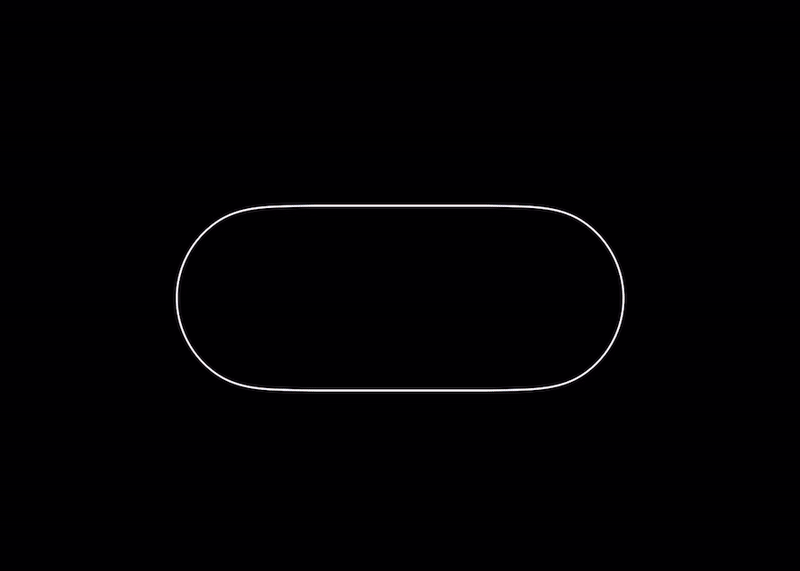

And that’s it! Now we can check the animation.

Ripple and glow combined

Particle cloud

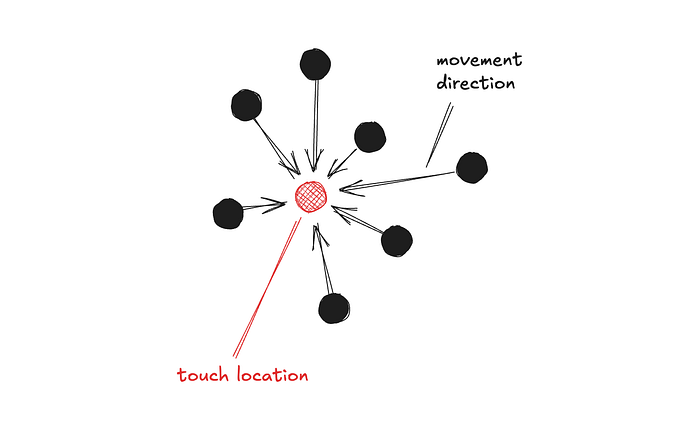

To draw a particle cloud, we first need to understand its mathematics. Each particle is described by its location, velocity, and lifespan. For UI purposes, we can also include radius and color in this set.

Particle characteristics

For the particle cloud, we will maintain its center, which is defined by the user’s touch location. Based on this point, we can calculate the direction of motion for each particle.

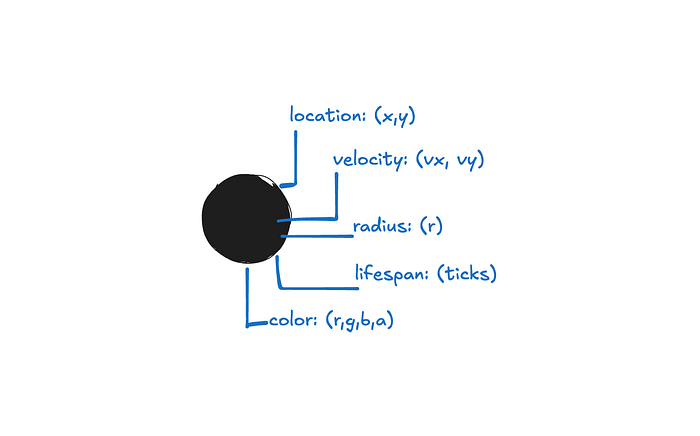

Particle cloud characteristics

Begin by defining structures for the described concepts. The SIMD types are vectors, so you can consider SIMD2<Float> in Swift and float2 in Metal as the identical type. The progress variable in ParticleCloudInfo has the same definition as the one we've described for the glowing effect.

struct Particle {
let color: SIMD4<Float>
let radius: Float
let lifespan: Float
let position: SIMD2<Float>
let velocity: SIMD2<Float>
}

struct ParticleCloudInfo {
let center: SIMD2<Float>
let progress: Float
}

To implement the described behavior, the existing options for interaction between SwiftUI and Metal are insufficient. We need to go a bit deeper and leverage the interaction between UIKit and MetalKit. Declare a UIViewRepresentable conforming type to adapt an MTKView instance for use in SwiftUI.

import MetalKit

struct ParticleCloud: UIViewRepresentable {
let center: CGPoint?
let progress: Float

private let metalView = MTKView()

func makeUIView(context: Context) -> MTKView {
metalView
}

func updateUIView(
_ view: MTKView,
context: Context
) {}
}

To draw on the MTKView instance, we need to create a type that conforms to MTKViewDelegate. The Renderer will manage everything needed to display the particles. First, we'll add a reference to MTKView and a variable for the touch point, which will be in normalized values. By default, we will assume the touch is at the center of the view.

We also maintain a progress variable here, defined similarly to the one in the glow shader. It affects the entire cloud based on whether the touch animation starts or ends. If progress is zero, we disable particle rendering and hide them.

final class Renderer: NSObject {
var center = CGPoint(x: 0.5, y: 0.5)

var progress: Float = 0.0 {
didSet {
metalView?.isPaused = progress == .zero
}
}

private weak var metalView: MTKView?

init(metalView: MTKView) {
self.metalView = metalView
}
}

Next, we will manually configure the interaction between UIKit and MetalKit. The core of this interaction is the MTLDevice type, which represents an instance of the GPU on the device and allows us to send commands for execution. We obtain a such one by calling MTLCreateSystemDefaultDevice().

To send commands, MTLDevice provides an intermediary called MTLCommandQueue. This can be roughly compared to GCD, where DispatchQueue serves as a command sender.

final class Renderer: NSObject {
...

private let commandQueue: MTLCommandQueue

init(metalView: MTKView) {
...

guard
let device = MTLCreateSystemDefaultDevice(),
let commandQueue = device.makeCommandQueue()
else {
fatalError("GPU not available")
}

self.commandQueue = commandQueue
}
}

Next, we need to create a representation of Metal functions, which is similar to what we have in SwiftUI. First, we create an MTLLibrary using a bundle that contains the expected Metal functions, and then we build these functions using their names. We don't have the functions yet, but we'll address that shortly.

To use the described functions, we create a pipeline state, specifically instances of the MTLComputePipelineState type. You can think of a pipeline state as a brush that the GPU uses for rendering — different brushes yield different rendering results.

final class Renderer: NSObject {
...

private let cleanState: MTLComputePipelineState
private let drawState: MTLComputePipelineState

init(metalView: MTKView) {
...

do {
let library = try device.makeDefaultLibrary(
bundle: .main
)

let clearFunc = library.makeFunction(
name: "cleanScreen"
)!
let drawFunc = library.makeFunction(
name: "drawParticles"
)!

cleanState = try device.makeComputePipelineState(
function: clearFunc
)
drawState = try device.makeComputePipelineState(
function: drawFunc
)
} catch {
fatalError("Library not available: \(error)")
}

super.init()
}
}

We also need to set up the particle data. Here, you’ll find predefined values that align with existing animations, but feel free to input your own to better understand how the pipeline operates.

To track the progress of rendering and correctly set particle dynamics, we store this data locally. The shader code will fully process and update this data. To make it accessible to the shader, we store it as an MTLBuffer instance.

The builder we use accepts a bytes pointer and the size of the memory at that pointer. Providing these parameters allows Metal to properly allocate memory for the parameters during shader execution.

final class Renderer: NSObject {
...

private var particleBuffer: MTLBuffer!

var particleCount: Int = 32

var colors: [SIMD4<Float>] = Array(
repeating: .init(
Float.random(in: 0.0..<0.3),
Float.random(in: 0.3..<0.7),
Float.random(in: 0.7..<1.0),
1.0
),
count: 3
)

init(metalView: MTKView) {
...

let particles: [Particle] = (0..<particleCount).map { i in
let vx = Float(5.0)
let vy = Float(5.0)

return Particle(
color: colors[i % colors.count],
radius: Float.random(in: 4..<30),
lifespan: .zero,
position: SIMD2<Float>(.zero, .zero),
velocity: SIMD2<Float>(vx, vy)
)
}

particleBuffer = device.makeBuffer(
bytes: particles,
length: MemoryLayout<Particle>.stride * particleCount
)
}
}

Lastly, we need to inform MTKView that the renderer we are describing will serve as its delegate. We also set the backgroundColor to clear to prevent UIView behavior from affecting the shader and disable frame buffer to allow the further operations we are about to implement.

final class Renderer: NSObject {
...

init(metalView: MTKView) {
...

metalView.device = device
metalView.delegate = self
metalView.framebufferOnly = false
metalView.backgroundColor = .clear
}
}

Conforming MTKViewDelegate requires the implementation of two methods, in the article we will focus only on draw.

extension Renderer: MTKViewDelegate {
func draw(in view: MTKView) { ... }

func mtkView(
_ view: MTKView,
drawableSizeWillChange size: CGSize
) {}
}

The draw method represents a single draw cycle, similar to what can be found, for example, in UIView.

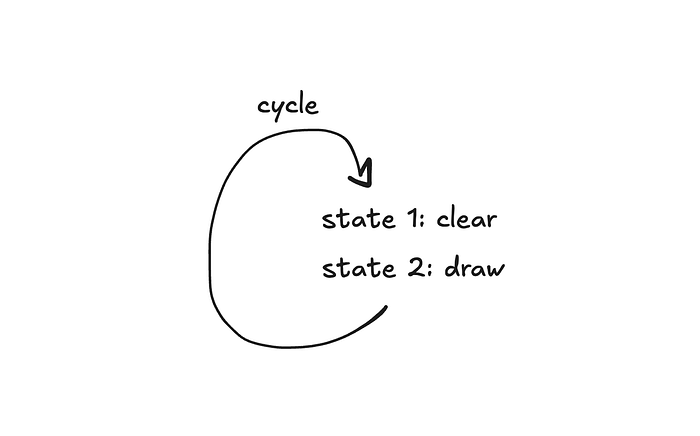

Drawing cycle

We start by setting up the core elements for the rendering pass. The drawable serves as the canvas for our drawings, while the texture contains the colors and content. To group all commands for a single rendering cycle, we use a commandBuffer from the commandQueue. Finally, the commandEncoder translates Swift method calls into Metal instructions. At the very end, we set the texture in the encoder, which it will pass to the Metal shaders.

func draw(in view: MTKView) {
guard let drawable = view.currentDrawable else { return }

let texture = drawable.texture

let commandBuffer = commandQueue.makeCommandBuffer()
let commandEncoder = commandBuffer?.makeComputeCommandEncoder()

commandEncoder?.setTexture(texture, index: 0)
}

Next we have to code the states for the drawing cycle. The first is clearState, whose task is to clear the canvas - to erase particles that may have been left after the previous drawing cycle. We passed the texture for the work earlier, but we will leave all the code of clearing in the shader. Here we need to tell it how to process the canvas correctly from the point of view of the device's computational capabilities.

By calling dispatchThreads, we instruct the encoder to apply the current state. The first parameter specifies the total number of elements to process, calculated in three dimensions. Since we are working with a 2D image, we only need to provide the canvas width and height.

The second parameter defines how many elements the device processes at once. Since resources are limited, the GPU processes these elements in groups. For more complex tasks, this helps optimize the workload and improve performance. In our example, we can rely on the base values provided by the device. We use threadExecutionWidth as the number of threads in a horizontal group, and calculate the group's height by dividing the total area (maxTotalThreadsPerThreadgroup) by the width.

func draw(in view: MTKView) {
...

commandEncoder?.setComputePipelineState(cleanState)

let w = cleanState.threadExecutionWidth
let h = cleanState.maxTotalThreadsPerThreadgroup / w

commandEncoder?.dispatchThreads(
MTLSize(
width: texture.width,
height: texture.height,
depth: 1
),
threadsPerThreadgroup: MTLSize(
width: w,
height: h,
depth: 1
)
)
}

By using dispatchThreads, we don't need to worry about whether the number of processed elements matches the number of threads in a group. Metal automatically handles this, provided the processor architecture supports nonuniform sizes. If the architecture misses such option option, calling the method will result in a runtime error. In this case, take into account size nonuniformity in calculations and call dispatchThreadgroups.

This part of the code is provided for demonstration purposes, do not add it to the project. If at the end you get the above error when running the shader, come back here and use this code.

commandEncoder?.dispatchThreadgroups(
MTLSize(
width: texture.width,
height: texture.height,
depth: 1
),
threadsPerThreadgroup: MTLSize(
width: (texture.width + w - 1) / w,
height: (texture.height + h - 1) / h,
depth: 1
)
)

Next we encode the drawState. The first step after a state change is setting the particle buffer. Using setBuffer, we give the Metal shader a reference to this buffer, allowing it to read and write particle data. Then we prepare the cloud information and pass it using setBytes, which copies the data directly to the GPU. This is sufficient since the shader will not modify this structure.

The final step in setting up this state is to call dispatchThreads again, but this time the number of elements corresponds to the number of particles we want to display. The number of threads in one thread group will also remain the default value.

func draw(in view: MTKView) {
...

commandEncoder?.setComputePipelineState(drawState)

commandEncoder?.setBuffer(
particleBuffer,
offset: 0,
index: 0
)

var info = ParticleCloudInfo(
center: SIMD2<Float>(Float(center.x), Float(center.y)),
progress: progress
)

commandEncoder?.setBytes(
&info,
length: MemoryLayout<ParticleCloudInfo>.stride,
index: 1
)

commandEncoder?.dispatchThreads(
MTLSize(
width: particleCount,
height: 1,
depth: 1
),
threadsPerThreadgroup: MTLSize(
width: drawState.threadExecutionWidth,
height: 1,
depth: 1
)
)
}

Same consideration regarding nonuniform dimensions.

This part of the code is provided for demonstration purposes, do not add it to the project. If at the end you get the above error when running the shader, come back here and use this code.

commandEncoder?.dispatchThreadgroups(
MTLSize(
width: (particleCount + w - 1) / w,
height: 1,
depth: 1
),
threadsPerThreadgroup: MTLSize(
width: drawState.threadExecutionWidth,
height: 1,
depth: 1
)
)

The final step in our rendering cycle is to finish encoding, present the current drawable, and send the commands for processing.

func draw(in view: MTKView) {
...

commandEncoder?.endEncoding()
commandBuffer?.present(drawable)
commandBuffer?.commit()
}

Before returning to writing the shader, let’s integrate the Renderer into the ParticleCloud description. When creating and updating the view, we assign a progress animation to ensure particle rendering stays up to date. We also pre-normalize the touch point so that the shader remains independent of the view's dimensions.

struct ParticleCloud: UIViewRepresentable {
...

func makeUIView(
context: Context
) -> MTKView {
context.coordinator.progress = progress

return metalView
}

func updateUIView(
_ view: MTKView,
context: Context
) {
context.coordinator.progress = progress

guard let center else { return }

let bounds = view.bounds

context.coordinator.center = CGPoint(
x: center.x / bounds.width,
y: center.y / bounds.height
)
}

func makeCoordinator() -> Renderer {
Renderer(metalView: metalView)
}
}

Shading the cloud

The first step is to duplicate the structure descriptions, making them accessible to the shaders.

struct Particle {
float4 color;
float radius;
float lifespan;
float2 position;
float2 velocity;
};

struct ParticleCloudInfo {
float2 center;
float progress;
};

Next, we’ll describe the shader for clearing the canvas. The parameters include the output texture for processing, which is accessed using the [[texture]] attribute. This attribute refers to the parameter table set earlier in the draw method, with the texture located at index 0. The id parameter corresponds to the index of the processing thread and the element being processed.

To clear the canvas, we set each pixel to transparent using half4(0), which returns a color where all components are set to 0.

kernel void cleanScreen (
texture2d<half, access::write> output [[ texture(0) ]],
uint2 id [[ thread_position_in_grid ]]
) {
output.write(half4(0), id);
}

Let’s move on to drawing the particles. Together with the texture we extract data about particles and the whole cloud from the buffer, their indices coincide with those specified earlier in the draw method.

With the first operation we convert the normalised centre position values to texture coordinates, so that we can work with pixels further.

kernel void drawParticles (
texture2d<half, access::write> output [[ texture(0) ]],
device Particle *particles [[ buffer(0) ]],
constant ParticleCloudInfo &info [[ buffer(1) ]],
uint id [[ thread_position_in_grid ]]
) {
float2 uv_center = info.center;

float width = output.get_width();
float height = output.get_height();

float2 center = float2(width * uv_center.x, height * uv_center.y);
}

Next, we define the rules for particle motion. Remember that the id parameter corresponds to the current element, using it we get data about the particle from the buffer.

By default, we set three conditions for a particle’s “rebirth”:

  1. If it is too close to the center.
  2. If it has just appeared (its coordinates are equal to 0.0).
  3. If its lifetime exceeds 100 ticks.

In case one of the conditions is fulfilled, we assign the particle a random position within texture boundaries and reset its lifetime. Otherwise we move it towards the centre and increase its tick by one.

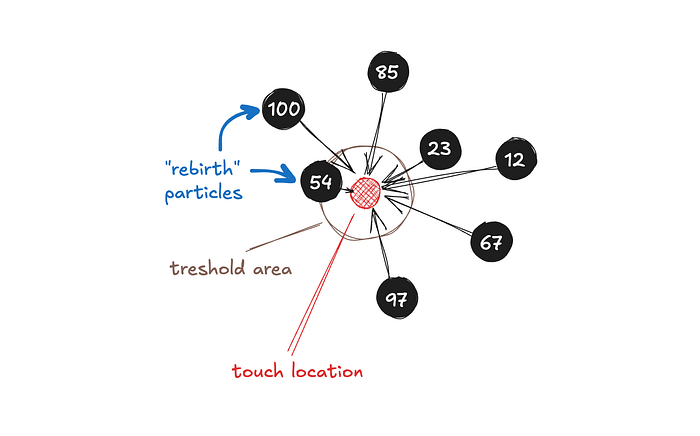

“Rebirth” rules illustrated

After computing the updated data, we update the particle and store it back into the buffer.

kernel void drawParticles (
texture2d<half, access::write> output [[ texture(0) ]],
device Particle *particles [[ buffer(0) ]],
constant ParticleCloudInfo &info [[ buffer(1) ]],
uint id [[ thread_position_in_grid ]]
) {
...

Particle particle = particles[id];

float lifespan = particle.lifespan;
float2 position = particle.position;
float2 velocity = particle.velocity;

if (
length(center - position) < 20.0 ||
position.x == 0.0 && position.y == 0.0 ||
lifespan > 100
) {
position = float2(rand(id) * width, rand(id + 1) * height);
lifespan = 0;
} else {
float2 direction = normalize(center - position);
position += direction * length(velocity);
lifespan += 1;
}

particle.lifespan = lifespan;
particle.position = position;

particles[id] = particle;
}

The rand function provides some pseudorandom values in range from 0.0 to 1.0, which is enough for our control.

float rand(int passSeed)
{
int seed = 57 + passSeed * 241;
seed = (seed << 13) ^ seed;
seed = (seed * (seed * seed * 15731 + 789221) + 1376312589) & 2147483647;
seed = (seed * (seed * seed * 48271 + 39916801) + 2147483647) & 2147483647;
return ((1.f - (seed / 1073741824.0f)) + 1.0f) / 2.0f;
}

Now, we need to draw the particles. The lifetime of each particle determines its color intensity as it moves across the canvas, while the overall progress affects the color intensity of all particles in the cloud. This progress is controlled by a touch animation that begins when the user touches the screen and ends when they release it.

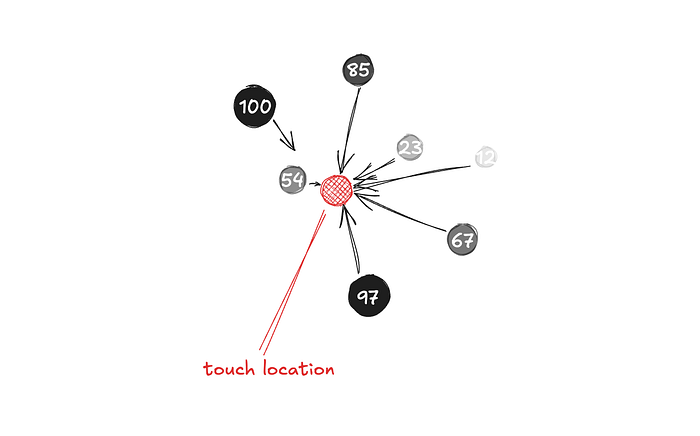

Lifespan progression illustrated

To draw, we iterate over the pixels in a 200 by 200 square and render only those pixels that fall within the circle.

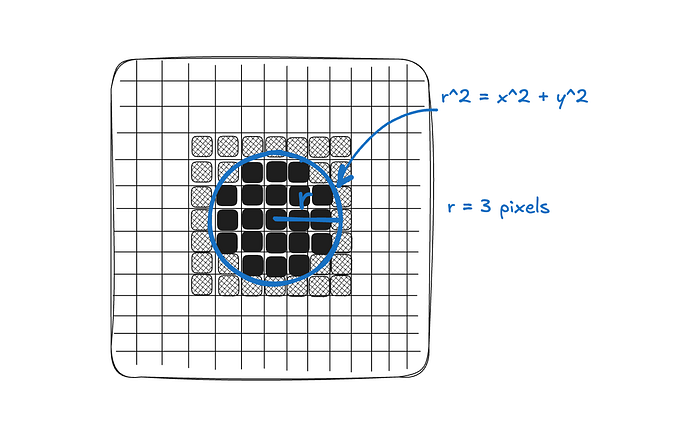

Pixels drawing illustrated

In the implementation, instead of using the pixel’s coordinates to calculate the radius, we use its sequence number in the for loop.

kernel void drawParticles (
texture2d<half, access::write> output [[ texture(0) ]],
device Particle *particles [[ buffer(0) ]],
constant ParticleCloudInfo &info [[ buffer(1) ]],
uint id [[ thread_position_in_grid ]]
) {
...

half4 color = half4(particle.color) * (lifespan / 100) * info.progress;
uint2 pos = uint2(position.x, position.y);

for (int y = -100; y < 100; y++) {
for (int x = -100; x < 100; x++) {
float s_radius = x * x + y * y;
if (sqrt(s_radius) <= particle.radius * info.progress) {
output.write(color, pos + uint2(x, y));
}
}
}
}

Timing the cloud

Returning to SwiftUI, we now need to animate the particle cloud using keyframes. Since we declared ParticleCloud as a view rather than a view modifier, we wrap it in keyframes differently by using the KeyframeAnimator instance directly. This is the only difference; otherwise, the content and logic of the animation remain similar to what we implemented for the glow effect. Make sure you put the particles cloud on top of ripple view.

ZStack {
Capsule()
.fill(.black)
.keyframeAnimator( ... )

KeyframeAnimator(
initialValue: 0.0,
trigger: glowAnimationID
) { value in
ParticleCloud(
center: dragLocation,
progress: Float(value)
)
.clipShape(Capsule())
} keyframes: { _ in
if glowAnimationID != nil {
MoveKeyframe(.zero)
LinearKeyframe(
1.0,
duration: 0.4
)
} else {
MoveKeyframe(1.0)
LinearKeyframe(
.zero,
duration: 0.4
)
}
}

...
}
Final animation

Conclusion

It was certainly a loaded but fascinating journey. We explored various approaches to working with shaders and their application in creating interactive UI components, particularly using the compute pipeline as a simple way to implement a particle system.

Static image for article thumbnail

Where to go from here? You could, for instance, optimize by moving particle rendering from the compute pipeline to the rendering pipeline, which could potentially boost performance. Or add even more details about each particle, including the shining border and geometry changes.

As promised, here’s a link to the gist with the source code of this animation. Also sharing useful materials for a deeper dive into working with shaders:

If you enjoyed this article, give it a clap so others can find it too. See you in the next experiments 🙌

--

--

Responses (5)
